4X1 Seamless 4K HDMI Multi viewer with KVM
Introduction
LINK-MI LM-SH41T is a high-performance ultra HD 4K Quad-view Multi Viewer. It’s capable of displaying 4 x 4K signals simultaneously on a single 4K display unit. It also features seamless switching, allowing for quick switching of audio and video. It supports KVM keyboard and mouse switching, as well as audio switching, and the switching of display modes and audio can be achieved through keyboard shortcuts.The device supports 4 x HDMI 1.4 inputs, with a maximum input resolution of 3840x2160@30Hz, and is backward compatible. It has 1 x HDMI 1.4 output, with a maximum output resolution of 3840x2160@30Hz. It supports 4 USB inputs for connecting computers and 2 USB outputs for connecting a mouse and keyboard.
Features
1. The individual display unit supports quad-view, left-right view, top-bottom view, and full-screen display modes.
2. Support 4-way HDMI 1.4 signal input, max. input resolution 3840*2160@30Hz. It's also backward compatible with lower resolution signals.
3. With 1-way HDMI 1.4 output, max. output resolution 3840x2160@30Hz. It can also switch the output resolution to 1920x1080@60Hz, 2560x1440@60Hz, 3840x2160@30Hz, and 1280x720@60Hz.
4. Support stereo audio output for the left and right channels through a 3.5mm headphone jack.
5. Support various display modes like non-deforming display and pixel-to-pixel display under left-right and top-bottom multi viewer modes.
6. Support KVM switching function with keyboard hotkeys for switching display modes, audio, and mouse cursor across under quad-view mode.
7. Support fixed position POP and PIP function.
8. Support seamless and instant switching, no black screen when switching between single-screen or different multi viewer modes.
9. Support chassis buttons, infrared remote control, keyboard hotkeys, RS232 serial port software control, and centralized control functions.
10. With LED indicator buttons, you can easily see the channel to which the signal is switched and whether it is in cut mode.
Specification
| Model No. | LINK-MI LM-SH41T |
| Name | Specification |
| Input | |
| Input Ports | 4x HDMI (built in audio), 4x USB |
| Input Resolution | Max 3840*2160@30Hz, backward compatible |
| Color Depth | 24bit, 16.77 million colors |
| POP, PIP Mode | Fixed position |
| Output | |
| Output Ports | 1x HDMI (built in audio) 2x USB connected to mouse, keyboard or other devices |
| Output Resolution | 3840*2160@30Hz, 2560*1440@60Hz, 1920*1080@60Hz,1280*720@60Hz are optional |
| Color Depth | 24bit, 16.77 million colors |
| Other | |
| Control Way | Chassis buttons, infrared remote control, keyboard hotkeys, RS232 serial port software control, and centralized control |
| Electrical Characteristics | Input Voltage: 12V |
| Power Consumption | Max 3W |
| Product Dimensions | 302mm (L) x 152mm (W) x 40mm (H) |
| Product Weight | 1.1KG |
| Package Dimensions | 400mm (L) x 250mm (W) x 95mm (H) |
| Package Weight | 2.2KG |

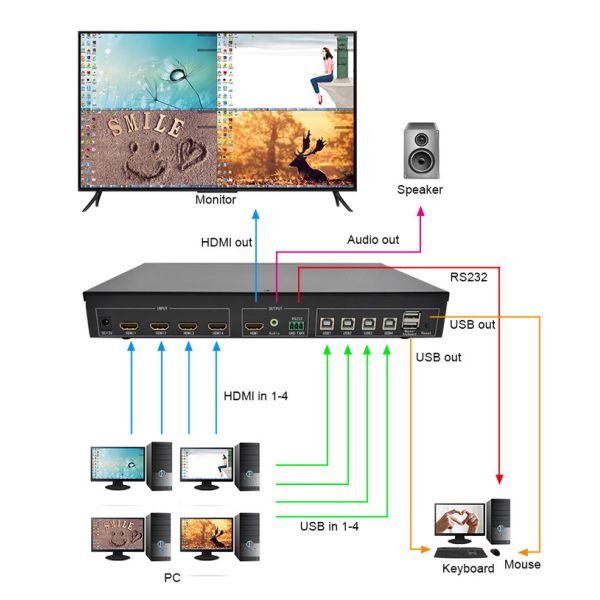

Connection Diagram

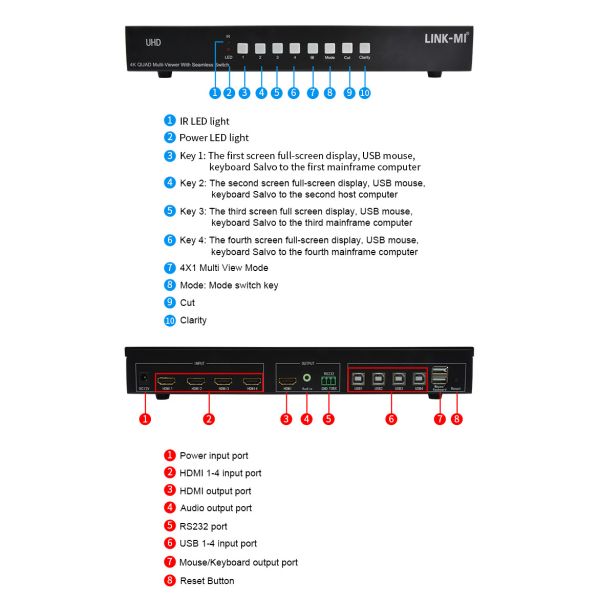

Panel Description
